Hydraulic Cartridge Valve

Hydraulic Screw-in Cartridge Valves are a type of hydraulic valve that can be easily installed and removed from hydraulic systems.Including Directional Control Valve, Flow control valve,Pressure control Valve,Solenoid Valve and Counterbalance Valve. These valves are designed to be compact and efficient, providing precise control over the flow of fluids in hydraulic systems. They are commonly used in a wide range of industrial applications, including construction equipment, agricultural machinery, and material handling equipment. These valves offer high reliability, durability and are easy to maintain, making them a popular choice among hydraulic system designers and engineers.

Get a Quote

Types of Hydraulic Cartridge Valves

A hydraulic valve that controls the direction of fluid flow in hydraulic systems.

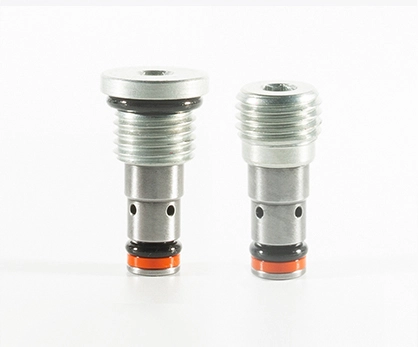

Directional Control Valve

Learn More

A hydraulic valve that regulates fluid flow in hydraulic systems, ensuring precise control and efficient use of hydraulic power.

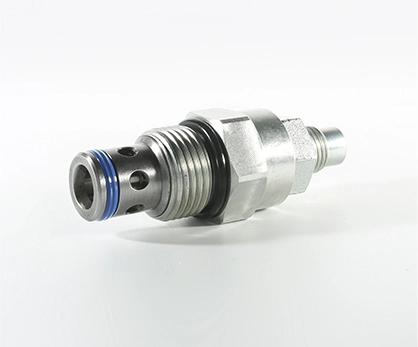

Hydraulic Flow Control Valve

Learn More

A hydraulic valve that regulates the pressure of fluids in hydraulic systems, preventing damage to equipment and ensuring safe and efficient operation.

Pressure Control Valves

Learn More

A hydraulic valve that is operated by an electric current, allowing for precise control of fluid flow in hydraulic systems.

Hydraulic Solenoid Valve

Learn More

A hydraulic valve that controls the movement of loads in hydraulic systems, ensuring smooth and stable operation.

Hydraulic Counterbalance Valve

Learn More

A hydraulic valve that provides precise and proportional control of fluid flow in hydraulic systems, allowing for accurate and efficient operation.

Electro-Proportional Valve

Learn More

What Are The Parts Of A Hydraulic Cartridge Valve?

Hydraulic screw-in cartridge valves, also known as insert valves, are modular hydraulic valves that are designed to be directly inserted into a manifold block. They consist of several components, including:

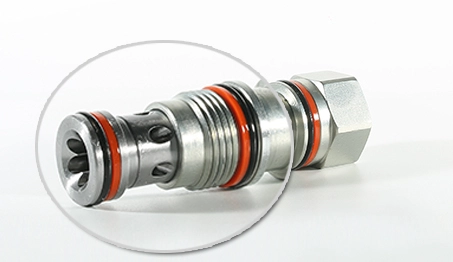

Cartridge

The cartridge is the main component of the valve, and is designed to fit into a cavity in the manifold block. It contains the valve mechanism, which is responsible for controlling the flow of hydraulic fluid.

Cartridge

Housing

The housing provides a protective covering for the cartridge and is usually made from steel or other durable materials. It is designed to withstand high pressure and temperature conditions.

Housing

Seal

The seal is an important component of the valve, as it prevents hydraulic fluid from leaking out of the valve. It is usually made from rubber or other elastomeric materials.

Seal

Spring

The spring is used to control the movement of the valve mechanism. It is usually made from steel or other durable materials.

Spring

Connector

The connector is used to attach the valve to the hydraulic system. It is usually threaded and designed to fit into the manifold block.

Connector

O-ring

The O-ring is used to create a tight seal between the cartridge and the manifold block. It is usually made from rubber or other elastomeric materials.

O-ring

Overall, the components of a hydraulic screw-in cartridge valve work together to provide precise control of hydraulic fluid flow, and are designed to withstand high pressure and temperature conditions.

What Is the Application Advantage Of Hydraulic Cartridge Valve?

Hydraulic screw-in cartridge valves, also known as insert valves, have several advantages in hydraulic systems, including:

Space-saving

Cartridge valves are compact and can be installed directly into a manifold block, resulting in a space-saving design that is ideal for applications with limited space.

Easy Maintenance

Cartridge valves can be easily replaced without the need for disassembling the entire hydraulic system. This saves time and reduces maintenance costs.

Customization

Cartridge valves can be easily customized to meet the specific requirements of an application. Different valve functions, sizes, and pressure ratings are available to suit a wide range of applications.

Versatility

Cartridge valves are available in a wide range of configurations, including directional control valves, pressure control valves, and flow control valves, among others. This makes them suitable for a wide range of hydraulic applications.

Reduced leakage

Cartridge valves have a reduced number of connections, which reduces the potential for leakage. This improves the reliability and efficiency of the hydraulic system.

High flow rates

Cartridge valves can handle high flow rates, making them ideal for high-pressure applications.
