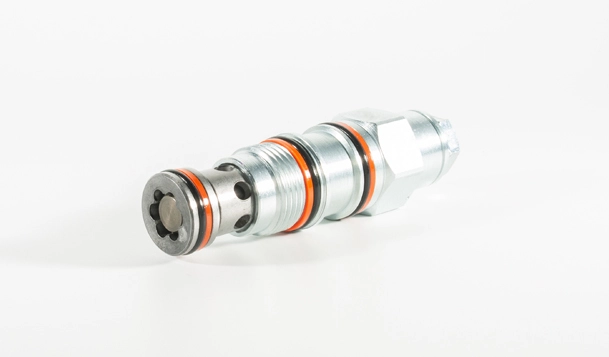

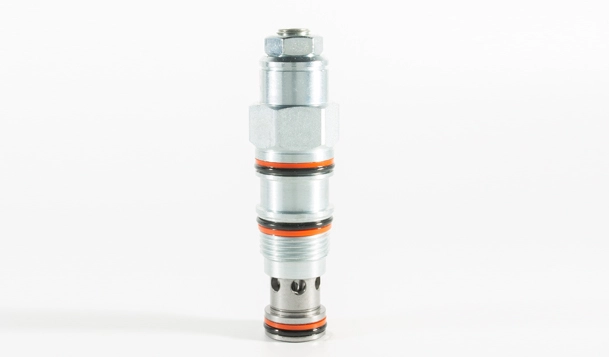

ICBBA-LHN Counterbalance Valve
A screw-in, cartridge-style, three-port, poppet-type, counterbalance valve controls the oil flow back to the internal spring chamber.
-
-
-
A screw-in, cartridge-style, three-port, poppet-type, counterbalance valve controls the oil flow back to the internal spring chamber.
| Operating Pressure | Loading pressure max. 215 bar when setting pressure at 280bar |

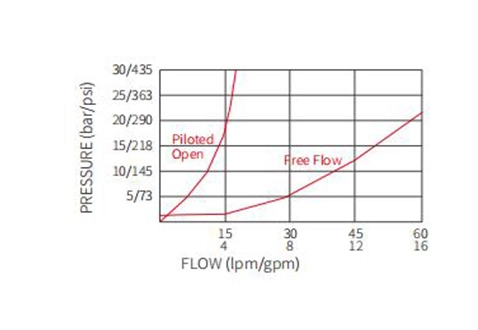

| Flow | See Performance Chart |
| Internal Leakage | Max. 0.4 ml/min. at Reseat Reseat pressure > 85% of setting pressure Factory pressure settings established at flow of 32.8 ml/min |
| Pilot Ratio | 3:1, max. setting should be equal to 1.3 times the load pressure |
| Temperature | -40 to 120°C |
| Fluids | Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 ssu) |
| Installation | No restrictions |
| Cavity | IT-11A; See page 309 |
Materials
| Cartridge | Weight: 0.2 kg. (0.44 lbs.); Steel with hardened work surfaces. Zinc-plated exposed surfaces. Seal: O-rings and back-up rings. |
| Standard Ported Body | Weight: 0.16 kg. (0.35 lbs.); Anodized high-strength 6061 T6 aluminum alloy, rated to 240 bar (3500 psi). Ductile iron and steel bodies available; dimensions may differ. Consult Inno. |
| Standard Coil | Weight: 0.11 kg. (0.25 lbs.); Unitized thermoplastic encapsulated, Class H high temperature magnetwire. |
| E-Coil | Weight: 0.14 kg. (0.3 lbs.); Perfect wound, fully encapsulated with rugged external metal shell; Rated up to IP69K with integral connectors. |
| 1. Max. setting pressure is at least 1.3 times max. load-induced pressure. |
| 2. Backpressure at port 2 should be in the setting range. |
| 3. Reseat pressure exceeds 85% of set pressure. |

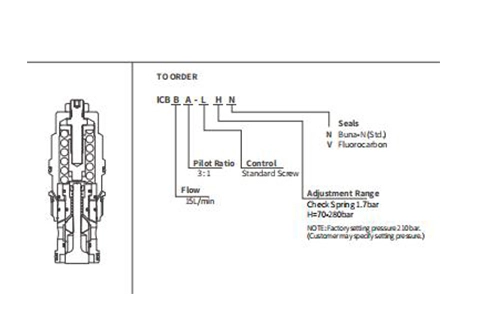

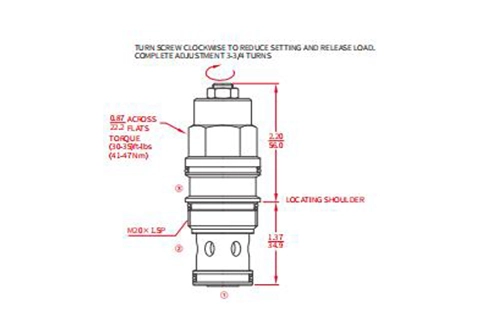

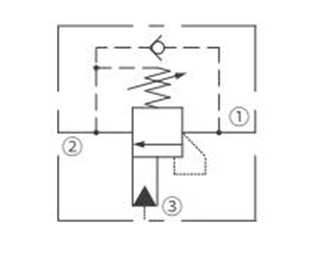

One-way function: The ICBBA-LHN allows the flflow from ② to ①, and blocks flflow from ① to ② when the pressure of ① is lower than the check spring setting. Relief valve function: The cartridge relieves flflow from ① to ② when the pressure of ①exceeds the check spring setting.
Pilot-assisted restriction function: When there is pilot-assisted pressure at port ③, it could change the opening degree from ① to ② to achieve the restriction function.
