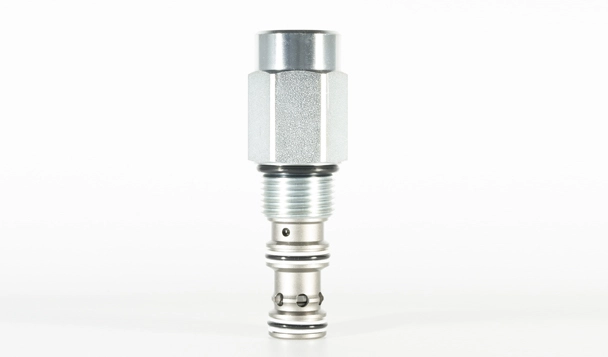

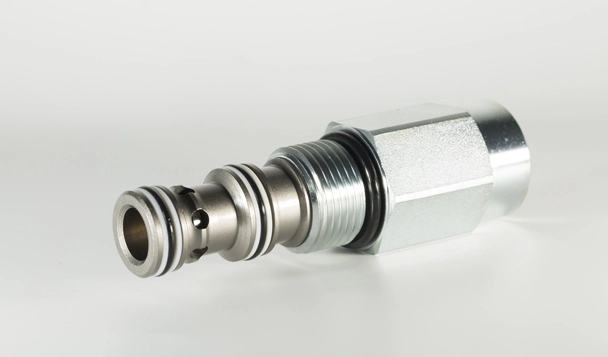

IEP12-S35 Piloted Logic Element Valve

The piloted logic element ensures that the valve adjusts its operation dynamically, maintaining optimal performance and efficiency in various pneumatic applications. With its durable construction and reliable control capabilities, the IEP12-S35 piloted logic element valve is well-suited for demanding pneumatic systems, such as heavy-duty industrial machinery, automation processes, and pneumatic power systems. It offers a dependable solution for achieving precise control and maximizing the performance of pneumatic systems.

Get a Quote
Products

Specifications of IEP12-S35 Piloted Logic Element Valve

Operating Pressure350 bar (5100 psi)
FlowSee Performance Chart
Internal Leakage131 ml/min. max (8 cu. in./minute) at 350 bar (5100 psi)

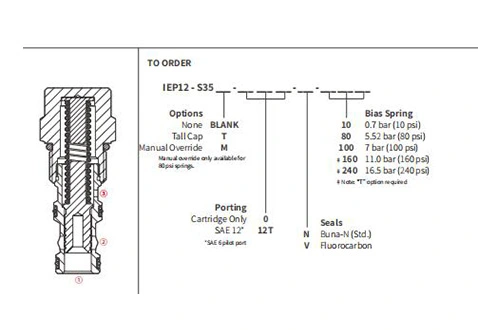

Bias SpringsSee the Ordering code on the right
Temperature-40 to 100°C
FluidsMineral-based or synthetics with lubricating properties at viscosities of 7.4
to 420 cSt (50 to 2000 ssu)
InstallationNo restrictions
CavityIVC10-S3; See page 304


Material

CartridgeWeight: 0.23kg.(0.5 lbs.); Steel with hardened work surfaces.
Zinc-plated exposed surfaces.
Seal: D type seal ring.
Standard Ported BodyWeight: 1.13 kg. (2.50 lbs.); Anodized highstrength 6061
T6 aluminum alloy, rated to 240 bar (3500 psi.
Ductile iron and steel bodies available; dimensions may differ.
Consult Inno.


Features of IEP12-S35 Piloted Logic Element Valve

1. Multiple function/ Application potential.
2. Low pressure drop.
3. Industry common cavity.
4. Manual override option available with 80 psi spring only.

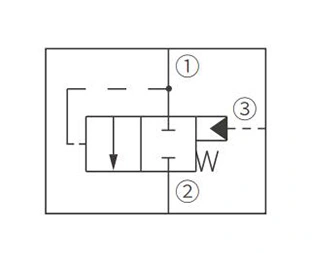

Operation Symbol of IEP12-S35 Piloted Logic Element Valve

Operation Symbol of IEP12-S35 Piloted Logic Element Valve

The IEP12-S35 is a spring-biased blocking valve that spool will shift to allow full flow from ① to ② only when the pressure at ① exceeds the cumulative pressure  of ③, plus the bias spring pressure value. IEP12-S35 is a pilot-to-close directional  valve.


With no pressure at ③, the flow will be allowed from ① to ② once the bias spring force is overcome with pressure at ①.

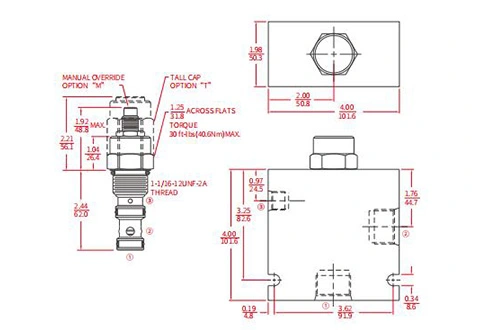

Performance/Dimension/Sectional Drawing of IEP12-S35 Piloted Logic Element Valve

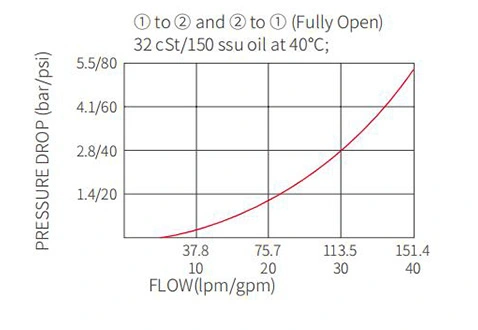

PERFORMANCE (cartridge only)
Performance/Dimension/Sectional Drawing of IEP12-S35 Piloted Logic Element Valve
DIMENSION (inch/mm)
Performance/Dimension/Sectional Drawing of IEP12-S35 Piloted Logic Element Valve
Sectional Drawing
Performance/Dimension/Sectional Drawing of IEP12-S35 Piloted Logic Element Valve
