IPD10-41 Piloted 3-Way Spool Valve
A screw-in, cartridge-style, pilot-operated, spool-type, hydraulic directional valve for three-way circuits requiring remote pilot actuation.
-
-
-
A screw-in, cartridge-style, pilot-operated, spool-type, hydraulic directional valve for three-way circuits requiring remote pilot actuation.
| Operating Pressure | 240 bar (3500 ps) |
| Proof Pressure | 350 bar (5100 psi) |

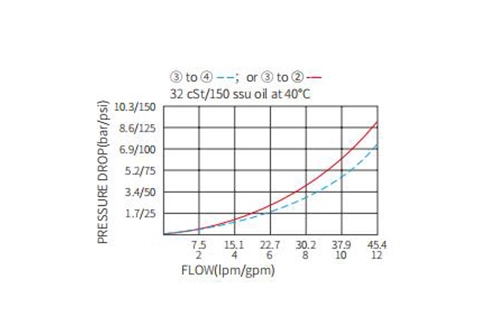

| Flow | See Performance Chart |
| Internal Leakage | 82 ml/min. max (5 cu. in./minute) at 207 bar (3000 psi) |
| Pilot Pressure Required | To Spool Crossover: 4.1 bar (60 psi) Spring: 4.7 bar (68.2 psi); 7.6 bar (110 psi) Spring: 7.6 bar (110 psi); To Full Spool Shift: 4.1 bar (60 psi) Spring: 5.2 bar (75 psi); 7.6 bar (110 psi) Spring: 8.6 bar (125 psi) |
| Oil Volume Required to Full Shift | 0.65 ml (0.04 cu. in.) |
| Temperature | -40 to 100°C |
| Fluids | Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 ssu) |
| Installation | No restrictions |
| Cavity | IVC10-4; See page 302 |
Materials

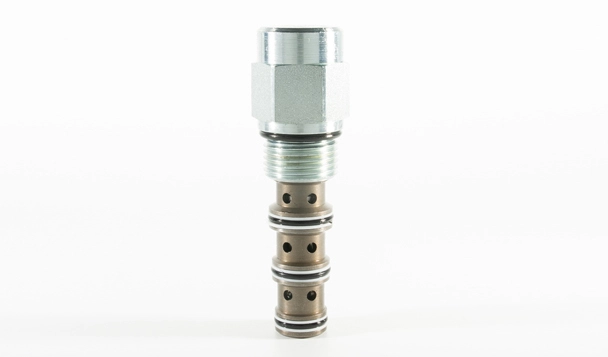

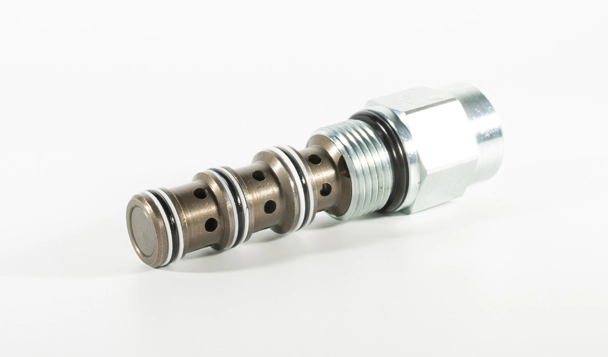

| Cartridge | Weight: 0.16kg. (0.35 lbs.); Steel with hardened work surfaces. Zinc-plated exposed surfaces. Seal: D type seal ring. |

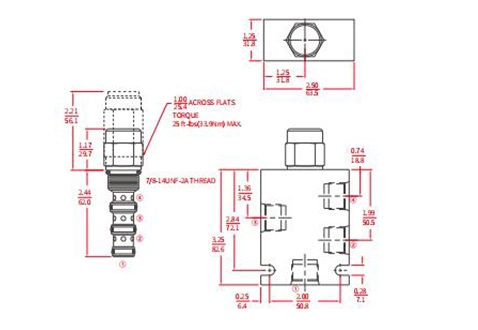

| Standard Ported Body | Weight: 0.34 kg. (0.75 lbs.); Anodized high-strength 6061 T6 aluminum alloy, rated to 240 bar (3500 psi). Ductile iron and steel bodies available; dimensions may differ. Consult Inno. |
| 1. Hardened spool and cage for long life. |
| 2. Industry common cavity. |

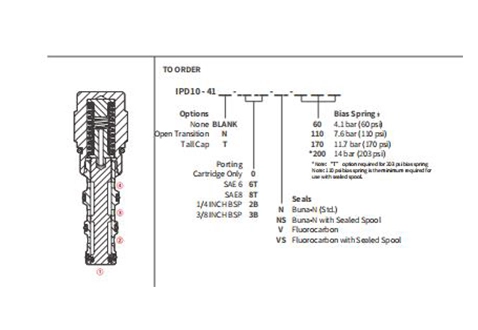

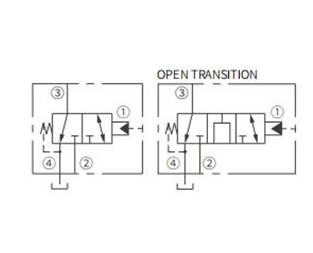

In a neutral position (unpiloted), the IPD10-41 allows flow from ③ to ④, while the flow is blocked at ②. On remote pilot signal at ①, the valve shifts to open from ③ to ②, while blocking flow to ④. Since ④ is connected to the spring chamber, pressure on ④ will directly (1:1) affect the pilot pressure required, and must always be added to the bias spring value.
Consult Inno for applications where bi-directional flow is required when the valve is in the normal or spring-offset position.
