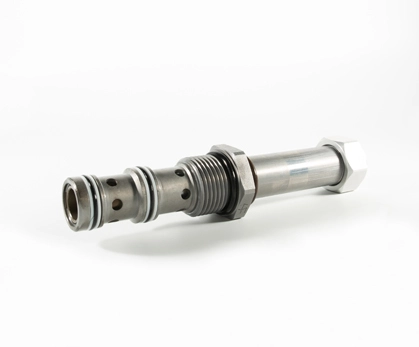

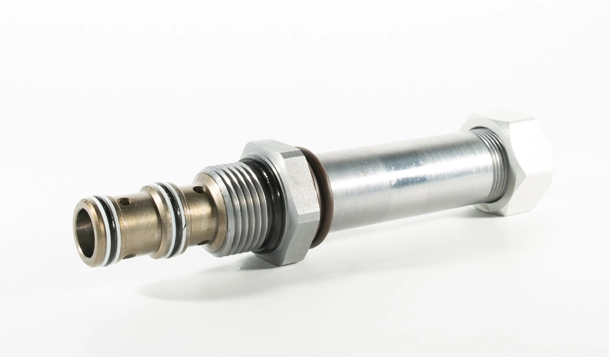

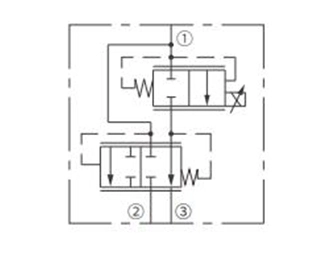

A solenoid-operated, electrically-variable, three-port, pressure-compensated, spool-type, normally closed when de-energized, proportional flow controlvalve. lt can be used as a priority-type flow regulator with pressure-compensated, regulated and bypass flow. It can also be used as a restrictive-type 2-way, pressure-compensated flow regulator when the bypass line (port ②) is blocked.

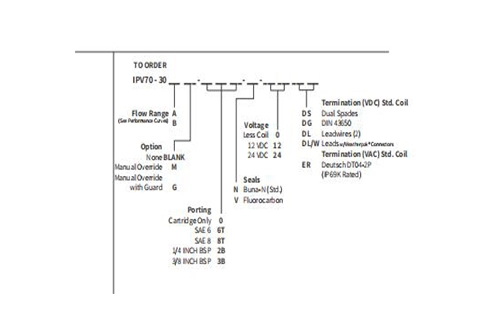

| Operating Pressure | Port①: 240 bar (3500 psi); Ports②&③: 207 bar (3000 psi) |
| Regulated Flow Rate | Bypass Blocked, Range A: 26 lpm (7 gpm); Bypass Blocked, Range B: 17 lpm (4.5 gpm) Bypass Open, Range A: 30 lpm (8 gpm); Bypass Open, Range B: 17 lpm (4.5 gpm) |
| Maximum Input Flow | Bypass Open, Range A: 50 lpm (13 gpm) Bypass Open, Range B: 26 lpm (7 gpm) |
| Internal Leakage | 197 ml/min. (12 cu. in./min.) fully closed at 207 bar (3000 psi) |
| Electrical | 2 standard voltage ratings |
| Fluids | Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 ssu) |
| Installation | No restrictions |
| Cavity | IVC10-3; See page 300 |
Materials

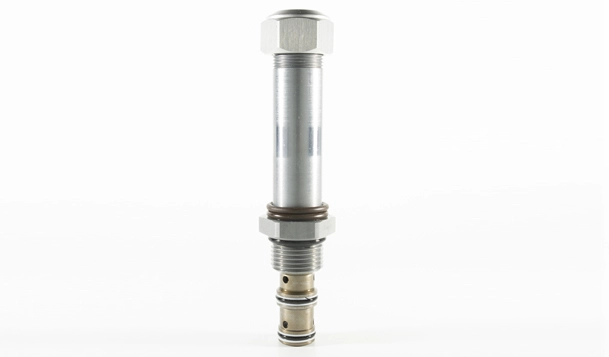

| Cartridge | Weight: 0.19 kg. (0.42 lbs.); Steel with hardened work surfaces. Zinc-plated exposed surfaces; Seal: O-rings and back-up rings. |
| Standard Ported Body | Weight: 0.36 kg. (0.80 lbs.); Anodized high-strength 6061 T6 aluminum alloy, rated to 240 bar (3500 psi); Ductile iron and steel bodies available; dimensions may differ; Consult Inno. |

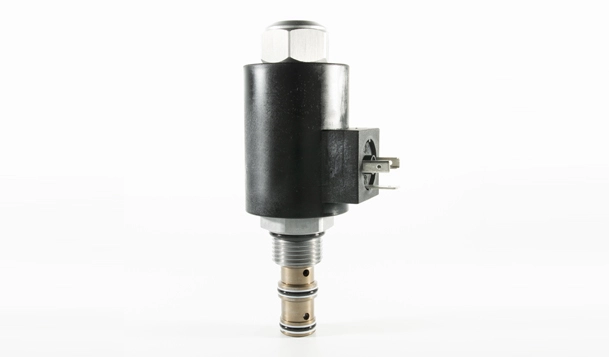

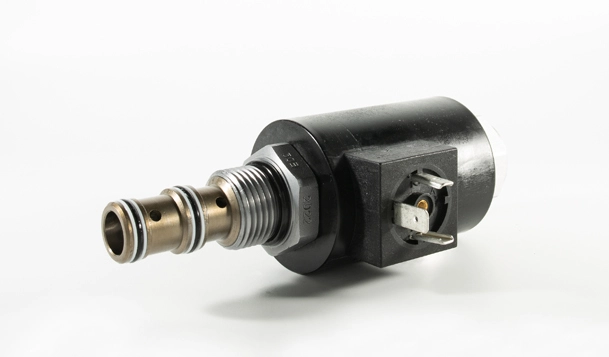

| IPV70-Seires Coil | Weight: 0.32 kg. (0.7 lbs.); Unitized thermoplastic encapsulated, Class H high temperature magnetwire. |
| Coil Voltage | 12VDC |
| 24VDC | |
| Threshold Current | 350±70 mA |
| 175±35 mA | |
| Max. Control Current | 1500±200 mA |
| 750±100 mA |
| 1. Excellent linearity and hysteresis. |
| 2. Hardened spool and cage for long life. |
| 3. Optional coil voltages and terminations. |
| 4. Efficient wet armature construction. |

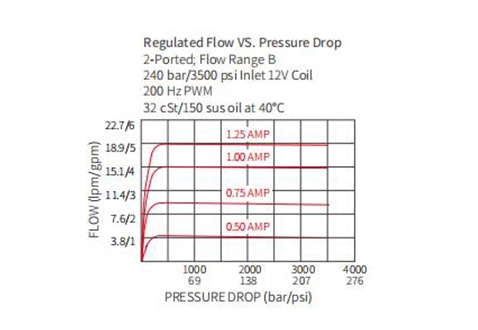

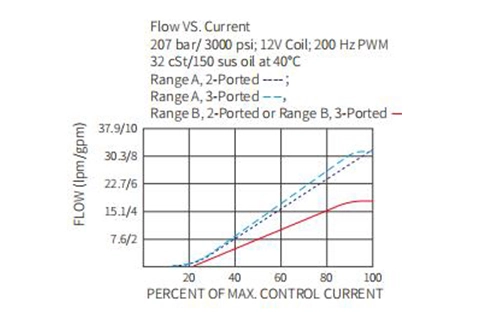

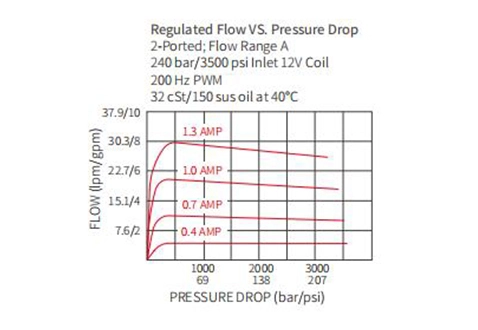

The IPV70-30 will regulate flow out of port ③ regardless of system working pressure. With an increasing current applied to the solenoid, the IPV70-30 will increase output flow.
When used as a bypass flow control in applications where the priority flow port will be blocked by external valving, the bypass pressure drop will increase unless a small amount of leakage is provided for the priority port. Consult Inno.

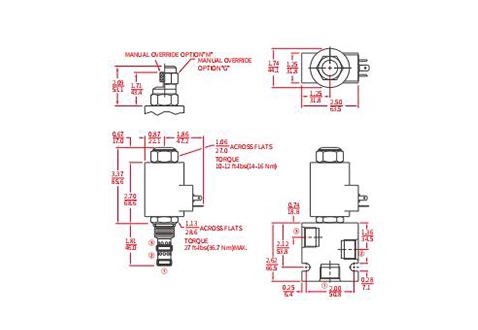

Turn clockwise approximately 1 turn to reach the start point. Continue another approximately 5 turns to full shift.
Turn counterclockwise approximately 6 turns to positive stop.
