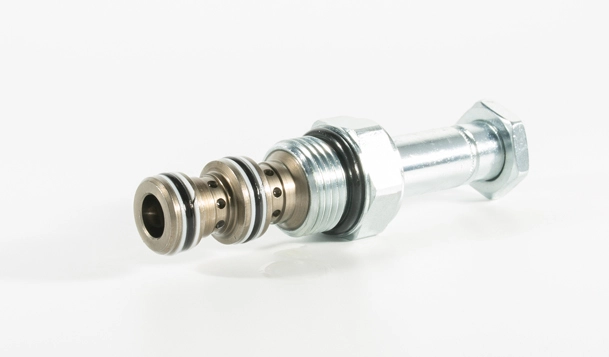

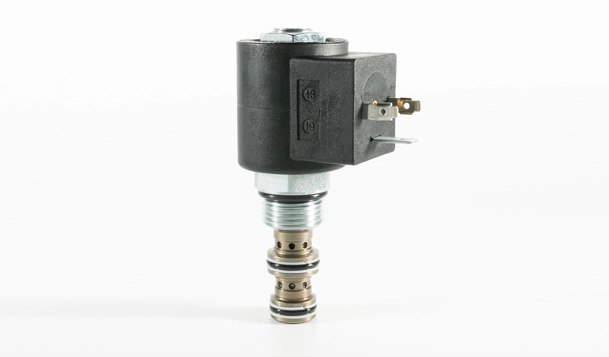

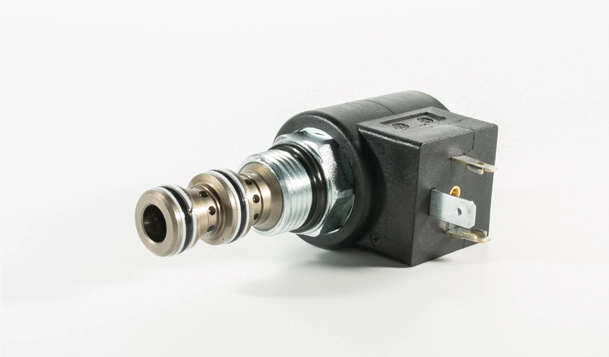

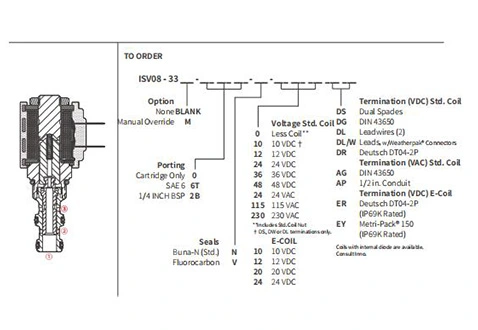

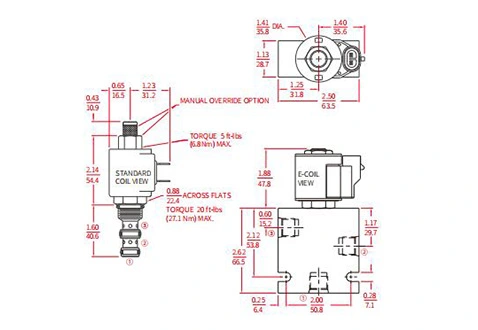

ISV08-33 Spool 3-Way 2-Position Solenoid Valve
A solenoid-operated, 3-way, 2-position, direct-acting spool-type, screw-in hydraulic directional valve, designed to control flow direction of actuator.
-
-
-
A solenoid-operated, 3-way, 2-position, direct-acting spool-type, screw-in hydraulic directional valve, designed to control flow direction of actuator.
| Operating Pressure | 207 bar (3000 psi) |

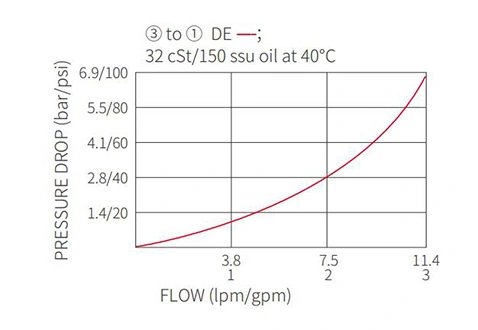

| Flow | See Performance Chart |
| Internal Leakage | 82 ml/min. (5 cu. in./minute) max. at 207 bar (3000 psi) |
| Temperature | -40 to 100°C |
| Coil Duty Rating | Continuous from 85% to 115% of nominal voltage |
| Initial Coil Current Draw at 20°C | Standard Coil: 1.2 amps at 12 VDC; 0.13 amps at 115 VAC (full wave rectified). E-Coil: 1.4 amps at 12 VDC; 0.7 amps at 24 VDC |
| Minimum Pull-in Voltage | 85% of nominal at 207 bar (3000 psi) |
| Fluids | Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 ssu) |
| Installation | No restrictions |
| Cavity | IVC08-3; See page 298 |
Material

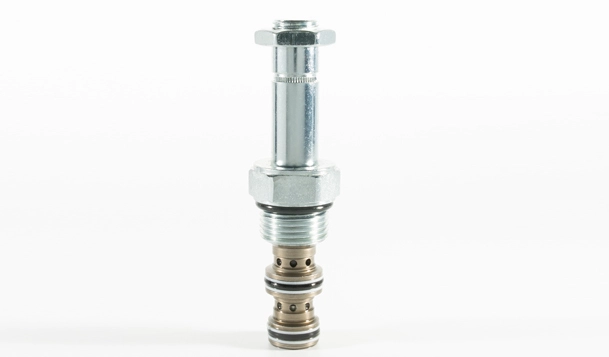

| Cartridge | Weight: 0.13 kg. (0.28 lbs.); Steel with hardened work surfaces. Zinc-plated exposed surfaces. Seal: D type seal rings. |
| Standard Ported Body | Weight: 0.27 kg. (0.60 lbs.); Anodized high-strength 6061 T6 aluminum alloy, rated to 240 bar (3500 psi). Ductile iron and steel bodies available; dimensions may differ. Consult Inno. |
| Standard Coil | Weight: 0.11 kg. (0.25 lbs.); Unitized thermoplastic encapsulated, Class H high temperature magnetwire. |
| E-Coil | Weight: 0.14 kg. (0.30 lbs.); Perfect wound, fully encapsulated with rugged external metal shell; Rated up to IP69K with integral connectors. |
| 1. Continuous-duty rated coil. |
| 2. Hardened precision spool and cage for long life. |
| 3. Optional coil voltages and terminations. |
| 4. Efficient wet-armature construction. |
| 5. Cartridges are voltage interchangeable. |
| 6. All ports may be fully pressurized. |
| 7. Manual override option. |
| 8. Optional waterproof E-Coils rated up to IP69K. |
| 9. Unitized, molded coil design. |
| 10. Compact size. |

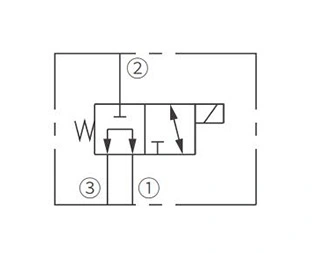

When de-energized, the ISV08-33 allows flow from ③ to ①, while blocking flow at ②. When energized, the cartridge's spool shifts to open the ② to ① flow path, while blocking flow at ③.
To override, push button in, twist counterclockwise 180°, and release. The internal spring will push the button out. In this position, the valve may be only partially shifted. To assure full override shift, pull the button out to its fullest extension and hold it in this position. To return to normal operation, push button in, twist clockwise 180°, and release. Override will be detented in this position.
